DIGITUS OnLine UPS modul 2000VA / 2000W

DIGITUS OnLine UPS modul 2000VA / 2000W
DIGITUS OnLine UPS modul 2000VA / 2000W
DIGITUS OnLine UPS modul 2000VA / 2000W
DIGITUS OnLine UPS modul 2000VA / 2000W
DIGITUS OnLine UPS modul 2000VA / 2000W
DIGITUS OnLine UPS modul 2000VA / 2000W
DIGITUS OnLine UPS modul 2000VA / 2000W
DIGITUS OnLine UPS modul 2000VA / 2000W
DIGITUS OnLine UPS modul 2000VA / 2000W
DIGITUS OnLine UPS modul 2000VA / 2000W
510,61 €
The OnLine UPS is an ideal backup solution for your demanding power requirements and offers high reliability in various industrial applications.- High power factor (1.0), a higher active power enables more connected loads, which saves space and reduces costs.- High efficiency in online mode, higher ... Pročitaj više
Dostupnost 1 Šifra proizvoda 300091 Proizvođač DIGITUS Model DN-170095 Jamstvo 2 godine
KategorijaOnline UPS

Dostava i povrat

Očekivana dostava petak, 6. studenoga
Naš detaljni sustav za praćenje pošiljaka redovito će Vas obavještavati o statusu
Mogućnosti plaćanja
Platna karticaVisaMastercardPayPalApple PayGoogle PayBankovna uplata

Opis

The OnLine UPS is an ideal backup solution for your demanding power requirements and offers high reliability in various industrial applications.

- High power factor (1.0), a higher active power enables more connected loads, which saves space and reduces costs.
- High efficiency in online mode, higher efficiency means optimized energy management and lower heat dissipation, resulting in energy savings and improved reliability.
- User-friendly LCD screen provides insight into UPS status for easy installation, configuration and operation.
- Compact rack/tower design optimizes the installation space in the rack and enables flexible installation.
- Minimize device downtime with hot-swappable, user-replaceable battery modules that can be replaced during operation.
- External battery modules allow the runtime to be extended.
- High number of outlets (8 x C13) for optimum power distribution to the consumers.
- Various communication interfaces (RS232/USB, parallel port, SNMP slot) enable remote monitoring of the system.
- Automatic battery self-test and fan speed control increase the service life of the components.
- The REPO function (Remote Emergency Power Off) switches the UPS off in the event of an emergency. If an emergency occurs, the REPO switch turns off the rectifier and the inverter and immediately stops the power supply to the load. The UPS stops charging.

The DIGITUS® OnLine UPS is a double-conversion UPS solution that offers first-class power failure protection and continuous power generation in a compact and flexible system. The single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when a longer uninterruptible power supply is required. The user-friendly LCD display and network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and unity power factor, the UPS meets your critical application requirements.

Ključne značajke
  • Online double conversion system (VFI-SS-111)
  • Input: IEC60320 C20 socket, 208/220/230/240 Vac
  • Output: 8 x IEC60320 C13, max. 10A per socket outlet
  • Nominal system power: 2000 VA / 2000 W, power factor 1.0
  • AC-AC (online VFI) efficiency: 93 %, ECO mode efficiency: 98 %.
  • Internal battery pack can be replaced during operation.
  • Battery: Valve-protected, non-spillable lead-acid battery
  • Battery quantity: 4 x 12V x 9.0 Ah
  • Charging: 4 hours to 90% capacity after full discharge
  • Network connection: Optional SNMP/Webcard (part number DN-170100) enables the UPS to be monitored remotely.
  • Local communication ports: USB, RS-232 (serial), SNMP card (optional), relay card (optional)
  • Emergency Power-off (EPO) contact for switching off the UPS in an emergency
  • Maximum operating temperature: 0 - 40 °C
  • Storage temperature: -25 - 55 °C
  • Relative humidity: 20 - 90% non-condensing
  • Operating altitude: < 1500 m
  • Product dimensions WxDxH (mm): 440 (19") x 460 x 86.5 (2U)
  • Product weight: 19.5 kg
  • Shipping dimensions WxDxH (mm): 560 x 590 x 200
  • Shipping weight: 23.7 kg
  • Safety standards: IEC/EN62040-1,IEC/EN60950-1
  • EMC standards: IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8
  • Optionally available: 19" UPS mounting kit (profile rails), article number DN-170109
  • IP protection class: IP21
  • Heat dissipation: 614 BTU/h
  • Noise level in online mode: approx. 50 dB(A) at a distance of 1 m (may vary slightly depending on load and ambient temperature).

Specifikacije

Specifikacije
Boja proizvoda
Crna
Broj AC izlaza
8 AC outlet(s)
Broj podržanih baterija
4
Broj serijskih priključaka
1
Dubina
460 mm
Dubina pakiranja
595 mm
Ethernet LAN (RJ-45) priključci
2
Faktor snage
1
Form faktor
Za ugradnju u ormar
Izlazna snaga
2000 W
Izlazni kapacitet snage
1.5 kVA
Kapacitet baterije
9 Ah
Komplet za montažu u rack
Da
Maksimalna struja
10 A
Mrežni utikač
C20 coupler
Napon baterije
12 V
Odvojivi mrežni kabel
Da
Priključak za nužno isključivanje (EPO)
Da
Priloženi kabeli
RS-232, USB cable
Priručnik
Da
Radna nadmorska visina
0 - 1500 m
Radna temperatura (T-T)
0 - 40 °C
Radni ulazni napon (min.)
208 V
Relativna vlažnost pri skladištenju (H-H)
20 - 90%
Relativna vlažnost zraka tijekom rada (H-H)
20 - 90%
Širina
440 mm
Širina pakiranja
555 mm
Temperatura skladištenja (T-T)
-25 - 55 °C
Težina
19.5 kg
Težina pakiranja
22.9 kg
Učinkovitost
93%
Učinkovitost (ECO način)
98%
Ugrađeni ventilator
Da
UK Trade Tariff carinska oznaka
85044085
Ulazni radni napon (maks.)
240 V
UPS topologija
Dvostruka konverzija (online)
USB priključak
Da
Veličina (inči)
48.3 cm (19")
Visina
86.5 mm
Visina pakiranja
200 mm
Volumen paketa
66705.5 cm³
Vrijeme punjenja baterije (90 %)
4 h
Vrsta hlađenja
Aktivno
Vrsta izvora napajanja
AC
Vrsta serijskog sučelja
RS-232
Vrsta USB priključka
USB Type-B
Vrsta zaslona
LCD
Vrste AC utičnica
C13 coupler
Zemlja podrijetla
Kina

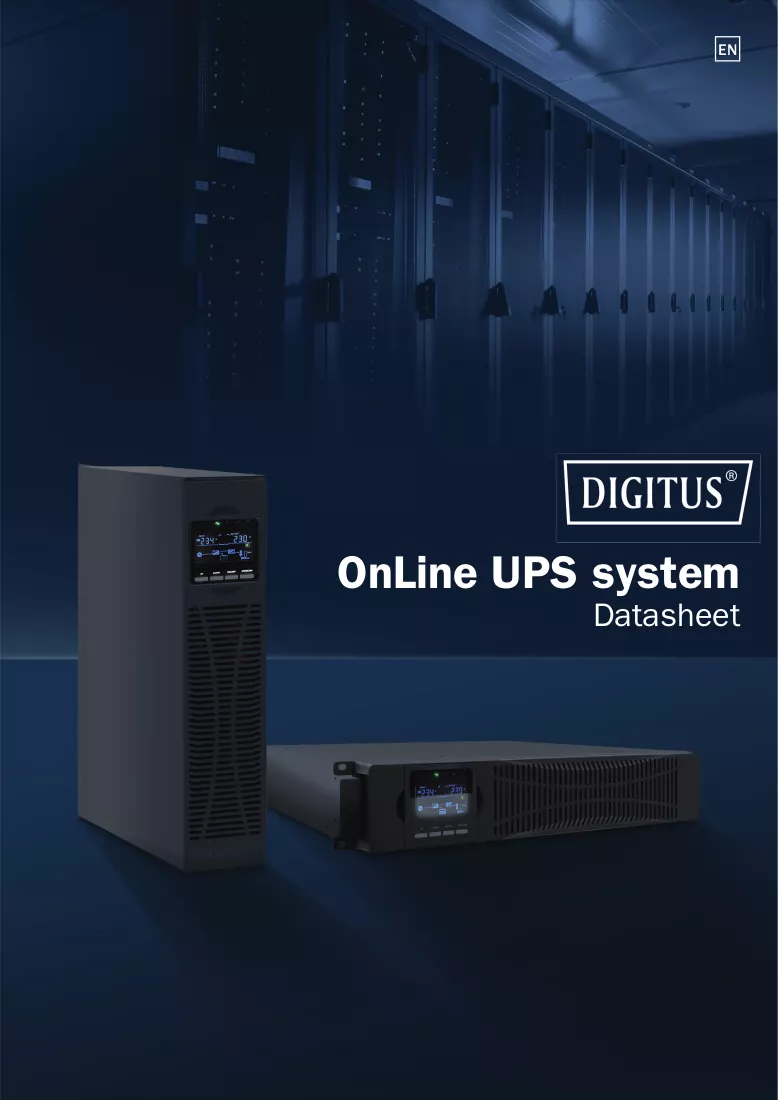

Letak
