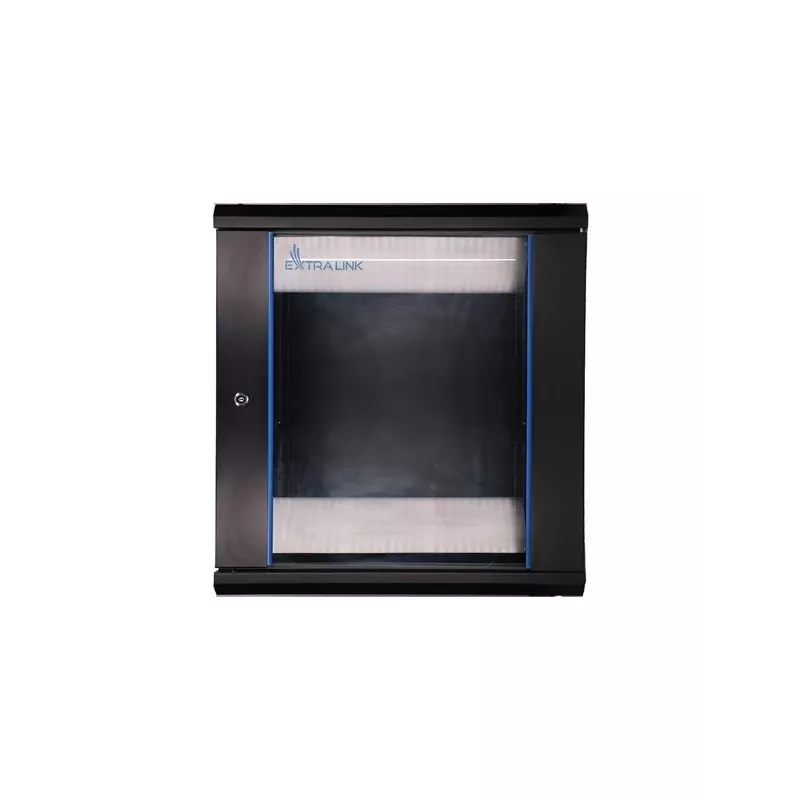

Zidni ormar Extralink Extralink Rackmount ormar 12U 600x450 crni

Extralink 12U 600x450 wall-mounted rack cabinet in black is designed for mounting in offices, network server rooms and CCTV control rooms. The cabinet body is made of cold-rolled steel, the front door features tempered glass and can be hinged to open to the left or right. The rack provides 12U of usable height and a total cabinet height of 640 mm. It supports organized installation of network equipment while offering a compact footprint and a key lock for basic physical security.

Advantages

The cabinet combines steel construction with a tempered glass front for a balance of durability and visibility. Vertical rails are clearly marked for easy installation of 19" equipment. Side panels use snap fasteners for quick removal during maintenance, and locks with keys are included. The top panel has two fan mounting locations and cable access to improve ventilation and cable routing.

Suitable for

• Small office network equipment
• Server racks in compact server rooms
• CCTV and security system hardware
• Telecommunications and network cabinets for wall mounting

Key specifications

• Rack capacity: 12U
• Height: 640 mm (total cabinet height)
• Width: 600 mm
• Depth: 450 mm
• Colour: Black
• Front door: tempered glass, reversible hinge
• Construction: cold-rolled steel
• Fan mounts: 2 positions on ceiling
• Lock: key lock included

How to use

Mount the cabinet on a suitable load-bearing wall using appropriate anchors and fasteners for the wall type. Install 19" equipment on the vertical rails, using the marked U positions to align devices. Use the removable side panels to access cables and internal mounting points during installation. If additional cooling is needed, install fans in the two ceiling locations and route cables through the provided conduit openings.

Recommendations

Install the cabinet at a height that allows safe access to equipment and maintenance. Ensure the wall and mounting hardware can support the combined weight of the cabinet and installed equipment; the cabinet is intended for compact setups (refer to device weight limits). Provide adequate ventilation and avoid obstructing fan openings for reliable operation.
