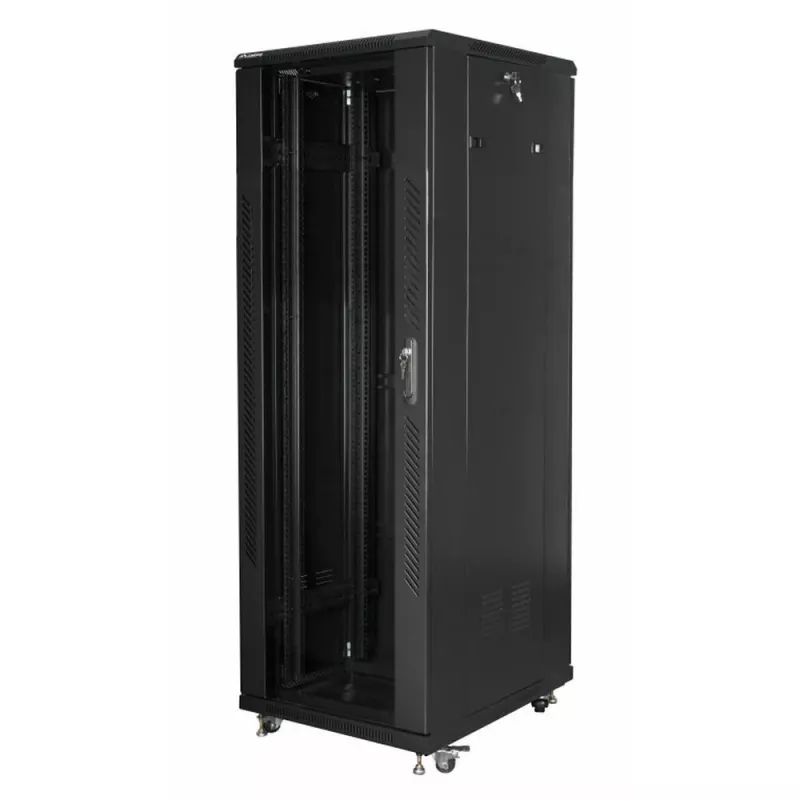

Samostojeći ormar Lanberg FF01-6837-12B

Free standing Lanberg cabinet FF01-6837-12B is a 19" floor cabinet designed for mounting network and server equipment with a maximum load capacity of 800 kg. The cabinet suits network rooms, server rooms, small and medium businesses, and data centers, and is also compatible with low-voltage systems such as cable TV, alarm and fire protection systems, access control, CCTV and IP surveillance. The unit is constructed from high-grade cold-rolled steel and features adjustable vertical mounting rails, removable side panels, a rear solid steel door and a front tempered glass door with a lock that can be fitted to open from either the right or left side.

Advantages

The cabinet offers a high static load capacity of up to 800 kg and flexible depth adjustment of the 19" vertical rails to accommodate different equipment sizes. Removable side panels and reversible tempered glass front door with lock simplify access and maintenance. Integrated top and bottom cable entry points with blank panels provide convenient cable routing, while the included fan tray with two 230 V fans helps manage airflow. The package also contains mounting rail accessories, M6 cage nuts and blank entry panels, and the cabinet is delivered in three flat packs for easier transport and self-assembly.

Key specifications

• Model: Lanberg FF01-6837-12B
• Rack size: 19"
• Maximum load capacity: 800 kg
• Construction material: cold-rolled steel
• Front door: tempered glass with lock, reversible (right/left)
• Rear door: solid steel with lock
• Side panels: removable, with locks
• Vertical rails: adjustable depth
• Cable entry: top and bottom panels with blank entry panels
• Cooling: fan tray with 2 × 230 V fans (included)
• Accessories included: mounting rail accessories, M6 cage nuts, blank entry panels
• Delivery: three flat packs for self-assembly

How to use

Unpack the three flat packs and assemble the cabinet following the included assembly instructions. Install and adjust the vertical 19" mounting rails to the required depth, secure equipment using the supplied M6 cage nuts and mounting accessories, and fit the side panels and doors. Route cables through the top or bottom cable entry panels, using the supplied blank panels where needed. Mount the fan tray and connect the two 230 V fans to a suitable power source. Lock the front and rear doors as required to secure installed equipment.

Recommendations

Place the cabinet on a level, stable surface and ensure sufficient clearance for ventilation and cable access. For heavy installations, verify floor load capacity and use appropriate anchoring if required. Regularly check fans and door locks, and plan cable management to maintain airflow and simplify maintenance.
