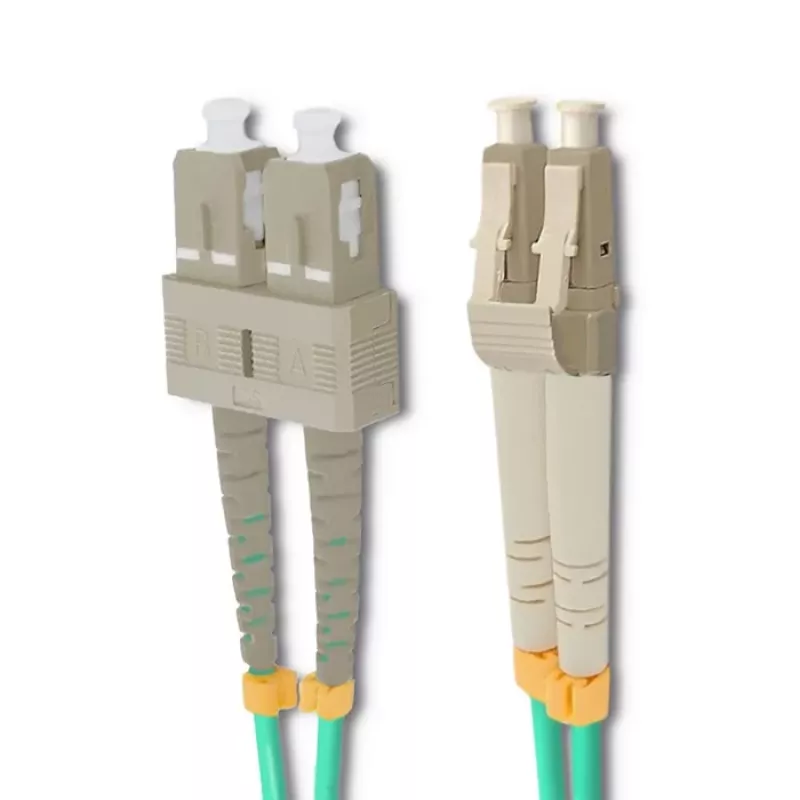

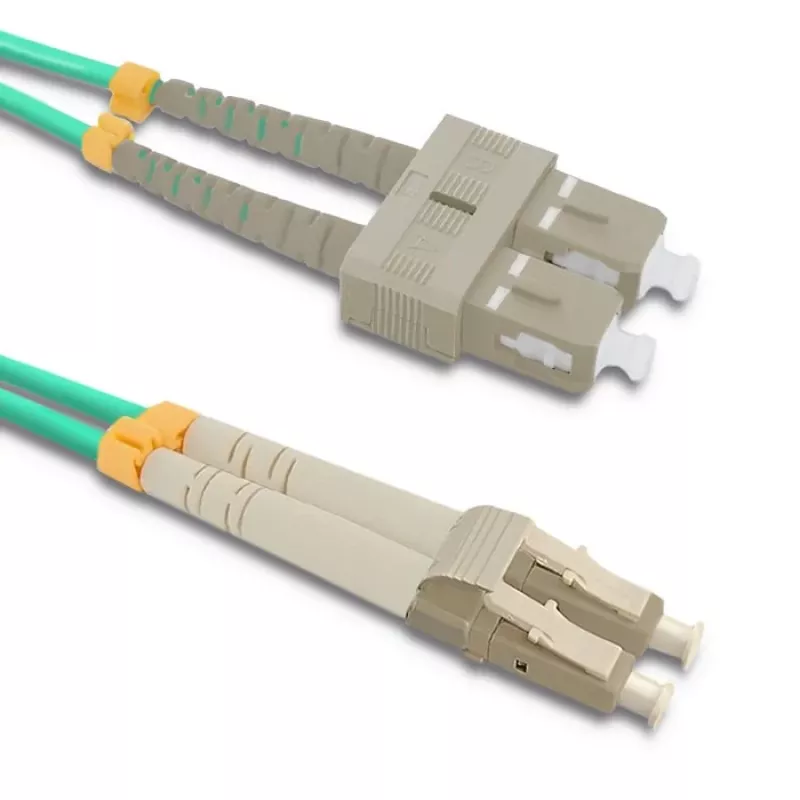

Qoltec optički patch kabel LC/UPC - SC/UPC multimode OM4 duplex 3m

The Qoltec Fiber Optic Patchcord is a high-performance multimode duplex cable designed for reliable data transmission in demanding network environments. Featuring LC/UPC to SC/UPC connectors, OM4 grade fiber, and a 3-meter length, this patchcord ensures low insertion loss and high return loss for optimal signal integrity.

Advantages

This patchcord offers exceptional bandwidth and speed, supporting 10GbE, 40GbE, and 100GbE applications. The LSZH jacket provides safety in confined spaces, while the zipcord construction allows easy routing and installation. With typical insertion loss ≤0.3 dB and return loss ≥50 dB, it guarantees minimal signal degradation.

Suitable for

• High-speed data networks
• Data centers and server rooms
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• Telecommunications infrastructure

Key specifications

• Connector A: LC/UPC
• Connector B: SC/UPC
• Fiber Mode: Multimode
• Fiber Grade: OM4
• Core/Cladding: 50/125 µm
• Length: 3 m
• Fiber Count: Duplex (2 fibers)
• Jacket Color: Aqua
• Jacket Material: LSZH
• Insertion Loss: ≤0.3 dB
• Return Loss: ≥50 dB
• Operating Temperature: -20°C to +70°C
• Standards: TIA/EIA-568-C.3, ISO/IEC 11801, RoHS

Recommendations

For optimal performance, ensure connectors are clean before installation. This patchcord is ideal for backbone cabling and high-bandwidth applications where reliability is critical.
