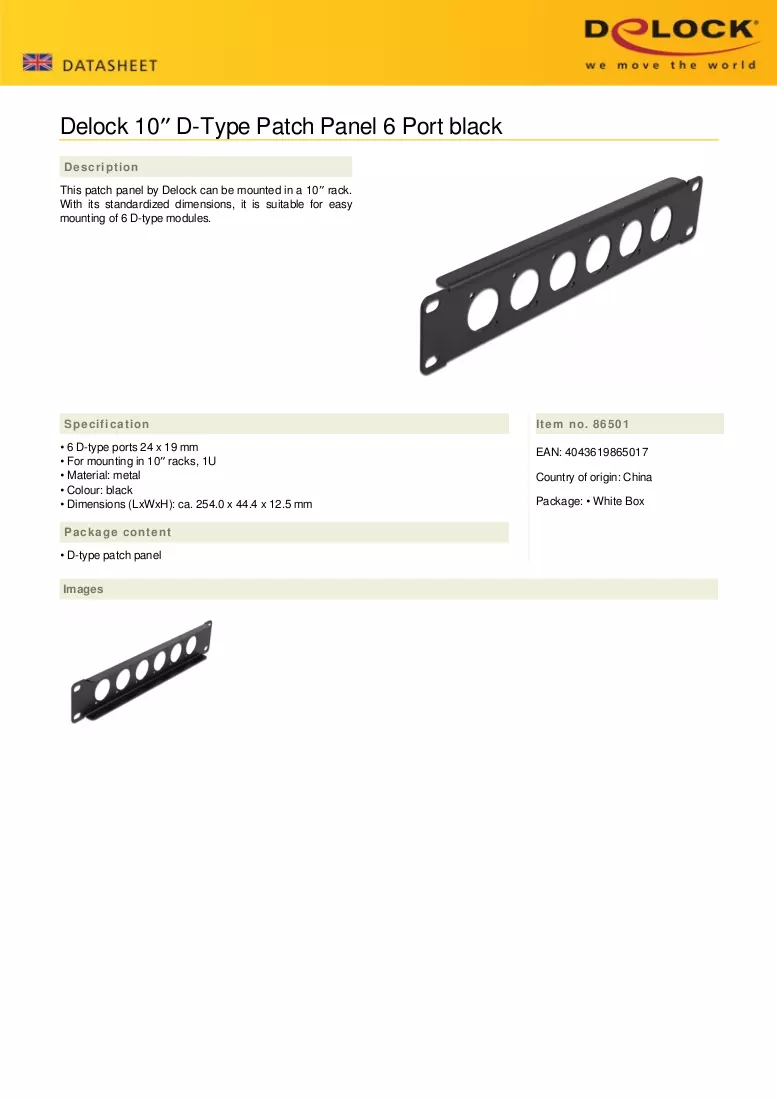

Patch panel 1U DeLOCK 86501

The DeLOCK 86501 is a 1U patch panel designed for mounting in a 10" rack. Constructed from durable metal with a black finish, it provides a standardized housing for up to six D-type modules and helps organize network connections in constrained rack spaces.

Advantages

The metal construction ensures durability and reliable mounting in a 10" rack. Standardized 1U dimensions allow easy integration into existing rack systems. The black finish gives a neutral appearance suitable for professional environments, while the ability to accept six D-type modules offers flexible connectivity options.

Suitable for

• Rack-mounted network cabinets with 10" mounting rails
• Organizing and consolidating D-type module connections
• Small server rooms or telecom racks where space is limited

Key specifications

• Brand: DELOCK
• Model: 86501
• Form factor: 1U, for 10" rack
• Compatible modules: up to 6 D-type modules
• Material: metal
• Colour: black
• Dimensions (W×H×D): 44.4 mm × 12.5 mm × 254 mm
• MPN: 86501
• EAN: 4043619865017

How to use

Mount the patch panel into a 10" rack using appropriate screws and rack rails. Install the D-type modules into the front openings according to their manufacturer instructions, then connect network cables to the module ports. Securely fasten the panel and route cables to maintain an organized rack layout.

Recommendations

For safe and stable installation, use rack-compatible screws and follow the rack manufacturer's mounting guidelines. Plan cable routing to avoid strain on connectors and maintain accessibility for maintenance.
