Mrežna kartica LogiLink WL0238

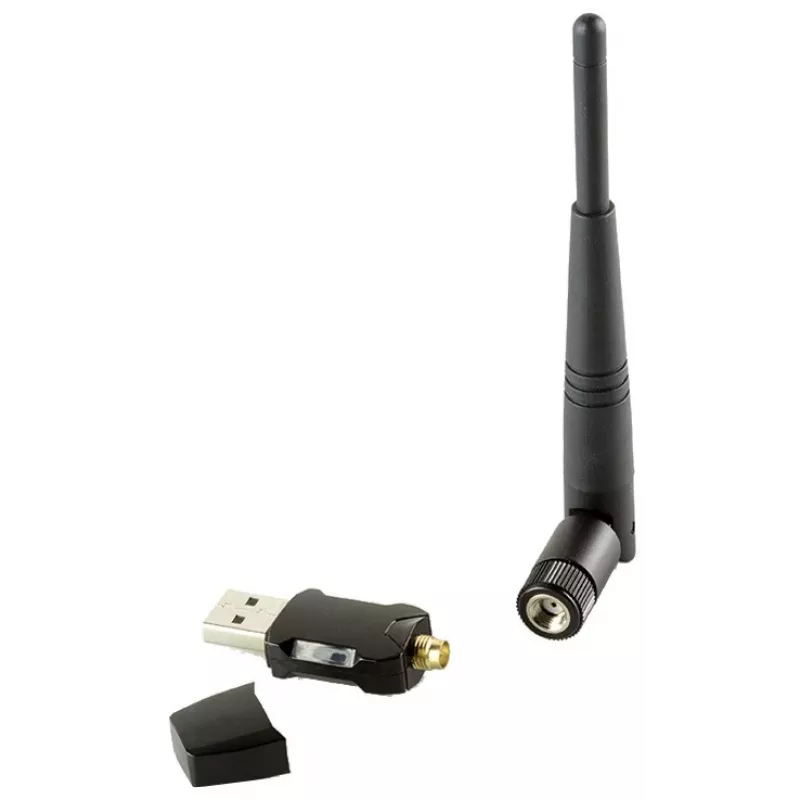

The LogiLink WL0238 is a mobile wireless LAN USB 2.0 micro adapter with an external antenna that enables dual-band wireless connectivity. It supports IEEE 802.11ac/a/b/g/n standards and offers data transfer rates up to 150 Mbps on 2.4 GHz and up to 433 Mbps on 5 GHz. The compact USB adapter is suitable for laptops and desktops and provides secure wireless access using multiple encryption methods.

Advantages

The adapter provides dual-band performance with support for up to 433 Mbit/s on the 5 GHz band and up to 150 Mbit/s on the 2.4 GHz band. It connects via USB 2.0 and includes an external antenna to improve signal reception. Supported security protocols include WEP, WPA, WPA2, WPA-PSK, TKIP and AES for protected connections. The small form factor and straightforward installation make it convenient for mobile and stationary computers.

Suitable for

• Adding wireless capability to laptops without built-in Wi‑Fi
• Upgrading desktop PCs with a compact USB WLAN adapter
• Dual-band usage for streaming and online browsing
• Secure wireless connections in home and small office networks

Key specifications

• Brand: LOGILINK
• Model: WL0238
• Interface: USB 2.0 (WLAN host interface)
• Wireless standards: IEEE 802.11a/b/g/n/ac
• Maximum data rate: up to 433 Mbit/s (5 GHz), up to 150 Mbit/s (2.4 GHz)
• Encryption: WEP, WPA, WPA2, WPA-PSK, TKIP, AES
• Weight: 0.034 kg

How to use

Insert the LogiLink WL0238 into an available USB port on your computer. Install any required drivers from the included media or download the latest drivers from the manufacturer’s website if the system does not automatically recognise the device. After driver installation, select the desired wireless network from the system network manager and enter the network password to connect. Position the external antenna for best reception if needed.

Recommendations

For optimal performance, use the adapter on the 5 GHz band when available to benefit from higher throughput and reduced interference; switch to 2.4 GHz for longer range compatibility. Keep device drivers up to date and place the adapter where the external antenna has a clear line of sight to the router for improved signal quality.
