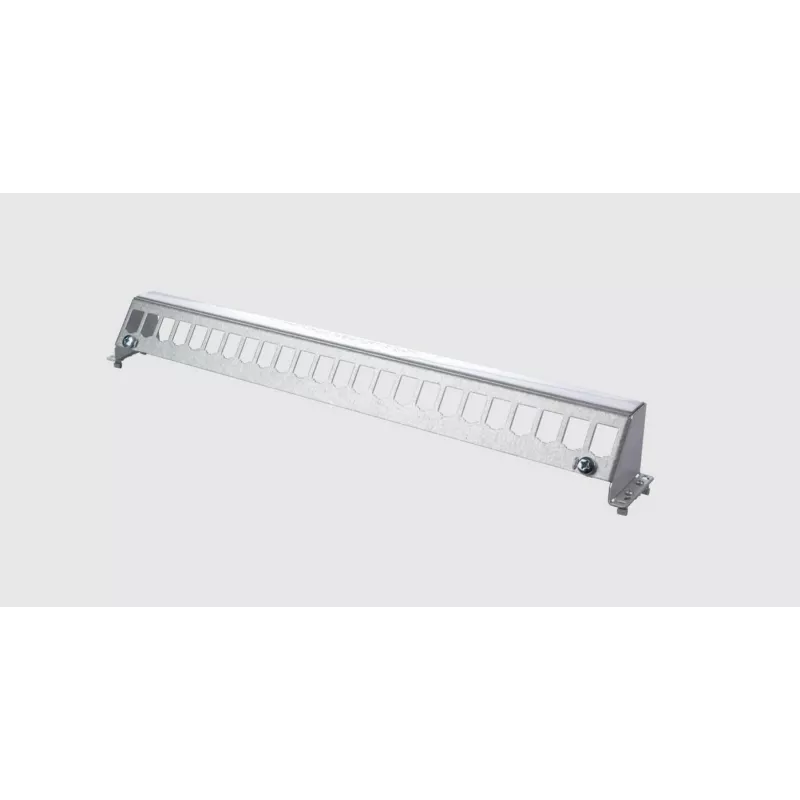

METZ CONNECT SmartConnect patch panel 24 porta MC moduli (130927-2400-E)

The METZ CONNECT SmartConnect patch panel 130927-2400-E is a high-performance 24-port shielded patch panel designed for 19-inch rack mounting. It supports Cat.6A (Class EA) and 10 Gigabit Ethernet, making it ideal for demanding network infrastructures. The panel comes with a rear cable management bar and central grounding connection for easy installation and reliable performance.

Advantages

Supports PoE+ and 4PPoE (IEEE 802.3at/bt) for power over Ethernet applications. Gold-plated contacts ensure long-term signal integrity. The powder-coated sheet steel housing provides durability and protection.

Suitable for

• Data centers and server rooms requiring high-density cabling
• Enterprise networks needing 10GBase-T connectivity
• Structured cabling systems in compliance with ISO/IEC 11801, EN 50173-1, and TIA/EIA-568-C.2

Key specifications

• Product Type: Network Patch Panel
• Rack Units: 1U
• Number of Ports: 24
• Connector Type: MC module (RJ45 compatible)
• Category Rating: Cat.6A (Class EA)
• Shielding: Shielded (STP/FTP)
• Transmission Performance: 10 Gigabit Ethernet (10GBase-T)
• Frequency Range: Up to 500 MHz
• Mounting Type: 19-inch Rack Mount
• Housing Material: Sheet steel
• Housing Finish: Powder-coated
• Color: Light grey (RAL 7035)
• Termination Method: IDC (Insulation Displacement Connector) for modules
• Contact Plating: Gold-plated contacts
• Grounding: Central grounding connection point
• Cable Management: Rear cable management bar included
• Operating Temperature: -40°C to +70°C
• Standards Compliance: ISO/IEC 11801, EN 50173-1, TIA/EIA-568-C.2
• PoE Support: PoE+ / 4PPoE (IEEE 802.3at / IEEE 802.3bt)

Recommendations

For optimal performance, use with Cat.6A shielded cables and appropriate modules. Ensure proper grounding to maintain shielding effectiveness.
