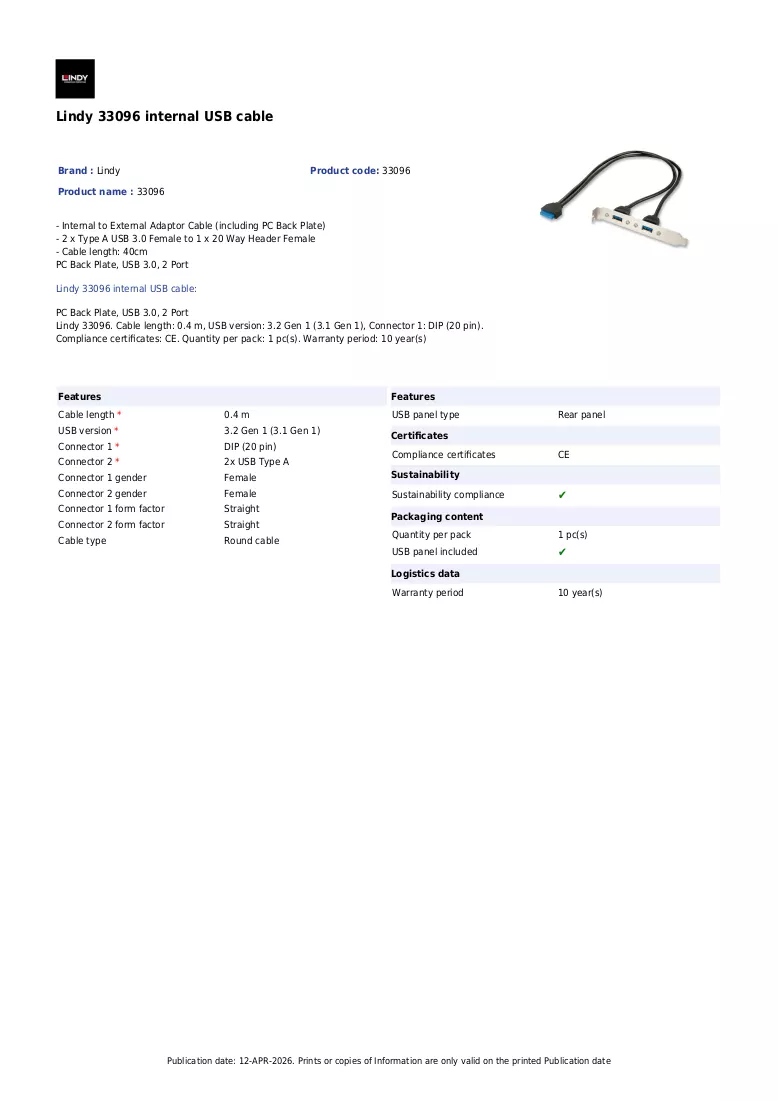

Lindy 33096 interni USB kabel

Internal USB cable for PC back plate with two USB 3.0 Type-A ports and a 20-pin DIP connector. The Lindy 33096 is a 0.4 m round cable that supports USB 3.2 Gen 1 transfer rates and is intended for internal connection between a motherboard header and a case back plate.

Advantages

The Lindy 33096 provides a compact internal connection with USB 3.0 performance, using a 20-pin DIP connector to ensure stable pin alignment. Its round cable construction simplifies routing inside the chassis, and CE certification plus a 10-year warranty indicate manufacturer reliability and longevity.

Suitable for

• Connecting a motherboard USB 3.2 Gen 1 header to a PC back plate with 2x USB Type-A ports
• Internal cable routing in desktop computer cases
• Upgrading or replacing internal USB ports on ATX/microATX builds

Key specifications

• Brand: Lindy
• Model / MPN: 33096
• EAN: 4002888330961
• Cable length: 0.4 m
• Cable type: Round cable
• Connector 1: 20-pin DIP (motherboard header)
• Connector 2: 2 × USB Type-A (back plate)
• USB standard: USB 3.2 Gen 1 (USB 3.0 compatible)
• Certification: CE
• Warranty: 10 years

How to use

Power off the PC and disconnect it from mains. Locate the motherboard USB 20-pin header, align the 20-pin DIP connector with the header ensuring correct pin orientation, and press gently until seated. Route the round cable to the case back plate and secure the 2× USB Type-A sockets in the plate opening according to your case design. Reconnect power and verify USB ports are detected by the operating system.

Recommendations

Use the Lindy 33096 for internal, non-exposed connections only. Avoid sharp bends and excessive tension on the cable to maintain signal integrity. Ensure correct pin alignment when connecting to the motherboard header to prevent damage.
