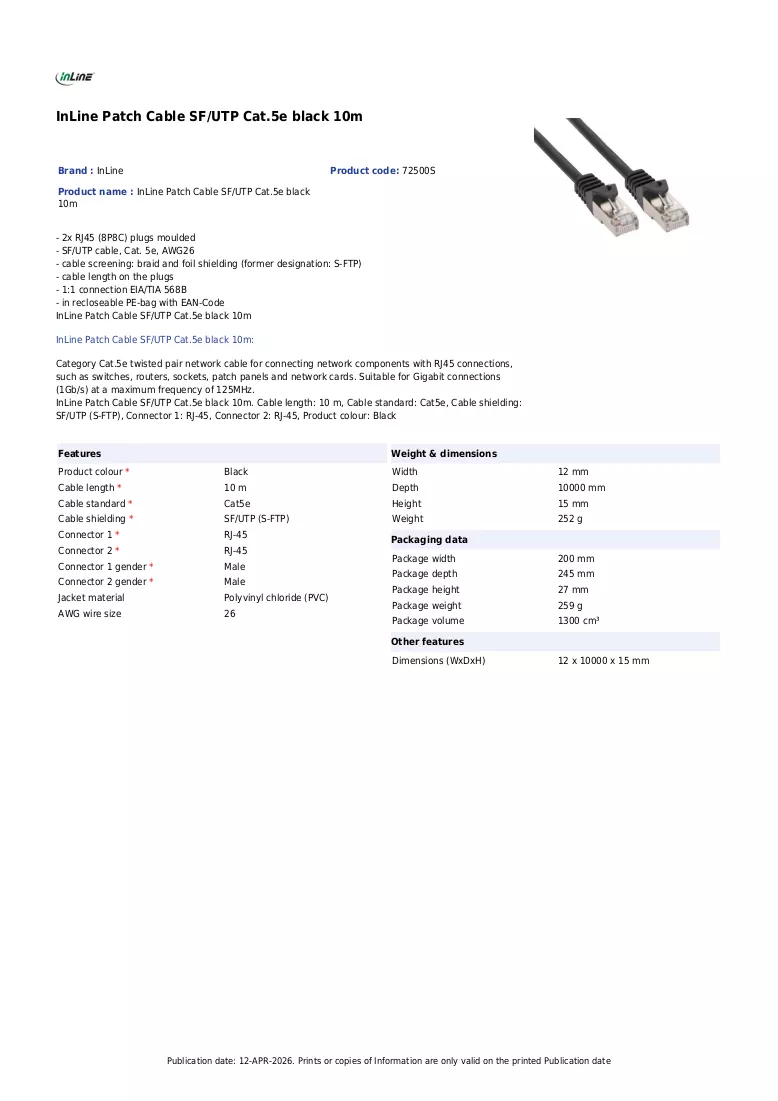

InLine 72500S patch kabel, SF/UTP, Cat.5e, crni, 10 m

The InLine 72500S is a Cat.5e SF/UTP patch cable designed for connecting network components with RJ45 ports, such as switches, routers, sockets, patch panels and network cards. It supports Gigabit connections (1Gb/s) at a maximum frequency of 125MHz and features moulded RJ45 plugs with strain relief and latch protection.

Key features

• Cat.5e twisted pair network cable
• SF/UTP shielding: braid and foil overall shielding (former designation: S-FTP)
• 2x RJ45 (8P8C) plugs, moulded
• 1:1 connection according to EIA/TIA 568B
• 4 twisted wire pairs
• Cable length indicated on the plugs
• With kink protection and latch protection
• Suitable for Gigabit connections (1Gb/s) at max. 125MHz

Specifications

• Brand: InLine
• MPN: 72500S
• Product colour: Black
• Length: 10 m
• Category: Cat.5e
• Shielding: SF/UTP
• Connector side A: RJ45 plug straight
• Connector side B: RJ45 plug straight
• Conductor material: CCA (copper/aluminium)
• Conductor size: AWG 26
• Outer diameter: 5.7 mm
• Assignment: 1:1
• Design: Round cable
• Sheath: PVC
• Bending radius (static): 45 mm
• Bending radius (dynamic): 45 mm
• Operation temperature: -10 to +60°C
• Storage temperature: -20 to +70°C
• PoE/PoE+/PoE++: No
• Country of origin: Taiwan
