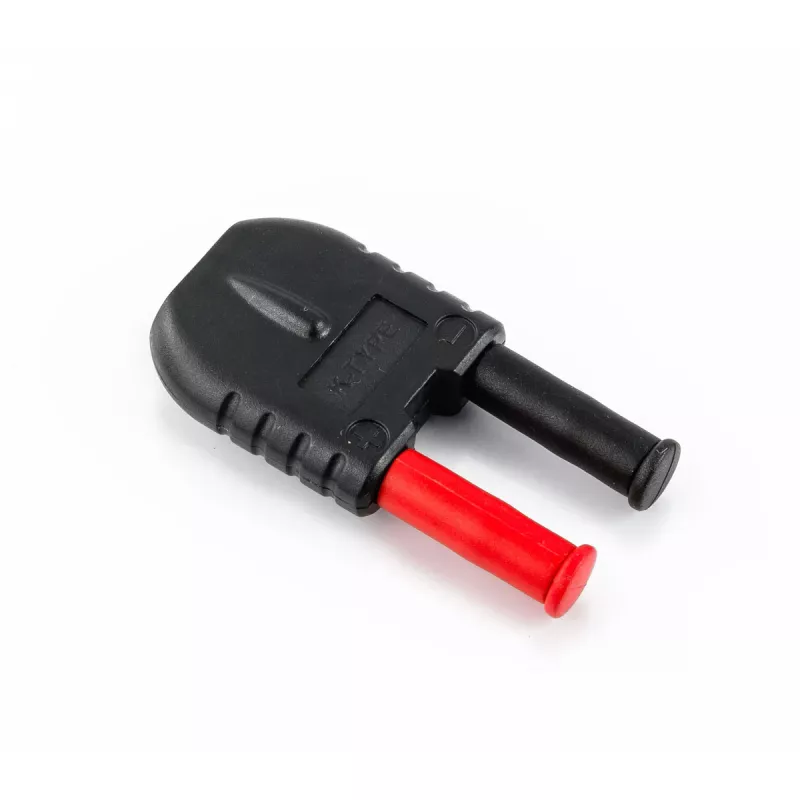

HT Instruments 1004310 T10 temperaturni adapter tip-K za multimetar

Measure temperature with your multimeter using this passive Type K thermocouple adapter. It converts thermocouple signals into millivolt output for direct mV input on compatible multimeters.

Overview

The HT Instruments 1004310 T10 is a single-channel temperature adapter designed for Type K thermocouples. It features integrated cold junction compensation and double insulation for safe operation. The adapter connects via a miniature Type K socket and outputs through 4mm banana plugs.

What stands out

• Supports Type K thermocouples with a measurement range of -50°C to 1000°C (probe dependent)
• Adapter accuracy of ±1°C
• Passive design – no external power required
• Compact ABS housing in black and red
• Compatible with multimeters having mV input

Technical details

• Input connector: Miniature Type K thermocouple socket
• Output connector: 4mm banana plugs
• Output signal: Millivolts (mV)
• Cold junction compensation: Integrated
• Operating temperature: 0°C to 50°C
• Operating humidity: < 80% RH
• Safety standard: EN 61010-1
• Insulation: Double insulation
• Number of channels: 1
• Housing material: ABS plastic

Our verdict

A straightforward and reliable adapter for temperature measurements with your existing multimeter. Its passive operation and integrated cold junction compensation make it a practical tool for field and lab use.
