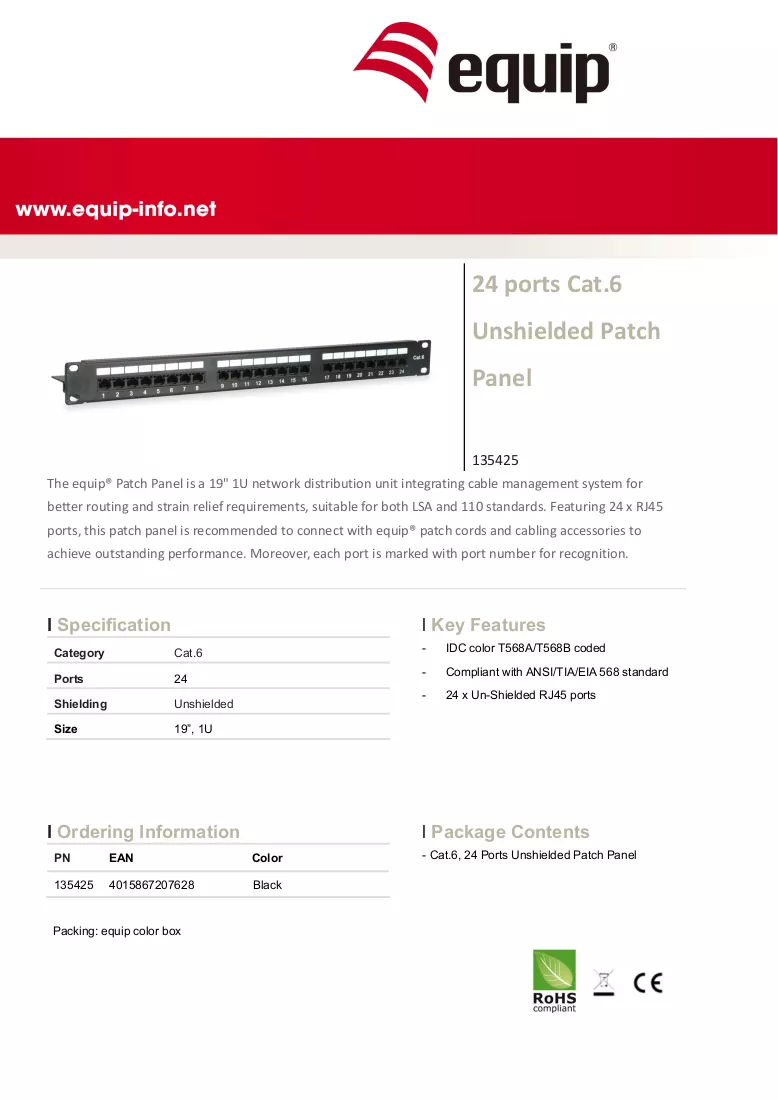

Equip 135425 patch panel 1U

The Equip 135425 Patch Panel is a 19" 1U rack-mount network distribution unit with 24 RJ-45 Cat6 ports in black. It combines a compact 1U form factor and robust metal construction to provide organized connectivity and reliable cable termination for small and medium network installations. Each port is individually numbered to simplify identification and management.

Advantages

The panel is compatible with both LSA and 110 IDC termination styles and follows the ANSI/TIA/EIA-568 wiring standard. It provides IDC color coding for T568A/T568B, integrated cable management and strain relief features, and a standard 19" 1U footprint for mounting in server racks.

Suitable for

• Wiring and organizing Cat6 Ethernet connections in server racks
• Structured cabling for small and medium office networks
• Data closets and network distribution panels
• Use with equip® patch cords and cabling accessories

Key specifications

• Ports: 24 x RJ-45
• Category: Cat6
• Form factor: 19" 1U
• Termination: Dual IDC (LSA and 110), T568A/T568B color coded
• Colour: Black

How to use

Mount the patch panel in a standard 19" 1U rack or cabinet. Terminate each network cable using the appropriate IDC method (LSA or 110) following the chosen wiring scheme (T568A or T568B). Route cables through the integrated cable management features and secure them to provide strain relief. Connect patch cords from the RJ-45 ports to network switches or devices as required.

Recommendations

Use equip® branded patch cords and approved cabling accessories to ensure compliance with Cat6 performance. Maintain consistent wiring standard (T568A or T568B) across the installation and avoid sharp bends or excessive tension on cables to preserve signal quality.
