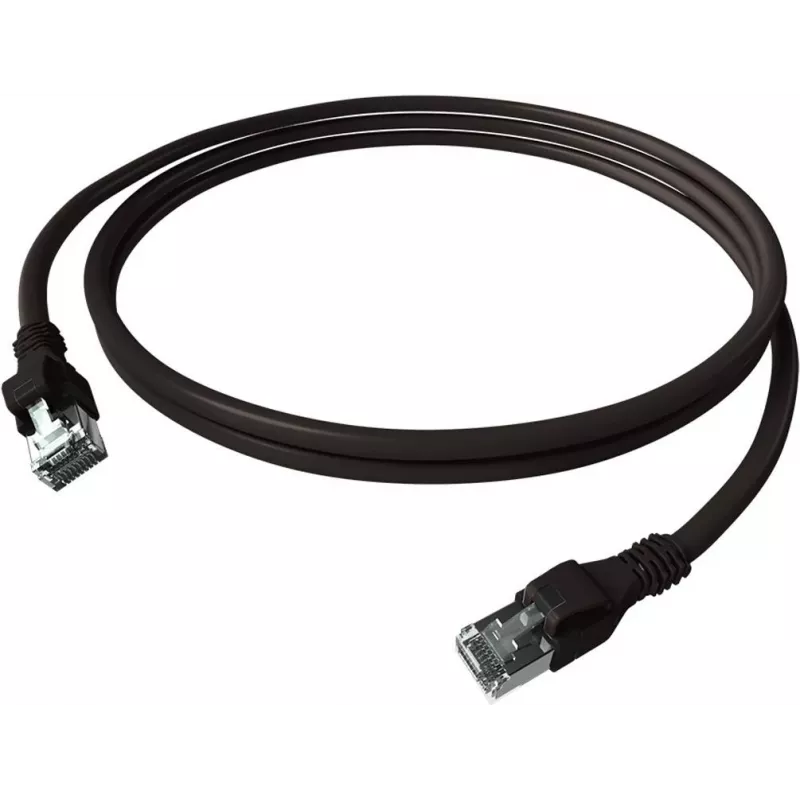

EASYLAN saCon DualBoot patch kabel S/FTP Cat.6A crni 10m

The EASYLAN saCon DualBoot Patch Cable is a high-performance S/FTP shielded Cat.6A patch cable designed for reliable 10 Gigabit Ethernet connections. With a length of 10 meters and a sleek black LSZH jacket, this cable is ideal for data centers, server rooms, and professional network installations where signal integrity and fire safety are paramount.

Advantages

This cable features DualBoot Push snagless boots that protect the RJ45 connectors and provide easy insertion and removal. The S/FTP shielding (overall braid and foil per pair) minimizes crosstalk and electromagnetic interference, ensuring stable data transmission at frequencies up to 500 MHz. The stranded copper conductors (AWG 26/7) offer flexibility and durability for frequent handling.

Suitable for

• 10GBASE-T networks (10 Gigabit Ethernet)
• Data centers and server rooms
• High-density patching environments
• Professional AV and security systems

Key specifications

• Cable Type: Patch Cable
• Category: Cat.6A (Augmented Category 6)
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Length: 10 meters
• Color: Black
• Connector Type: RJ45 (8P8C) both ends
• Connector Plating: Gold-plated contacts (50µ")
• Conductor Material: Copper
• Conductor Gauge: AWG 26/7 (stranded)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Bandwidth: 500 MHz
• Data Transfer Rate: Up to 10 Gbps
• Boot Type: DualBoot Push (Snagless, Strain Relief)
• Wiring Scheme: TIA/EIA 568B
• Flammability Rating: IEC 60332-1
• Operating Temperature: -20°C to +60°C
• Certifications: RoHS compliant

Recommendations

For optimal performance in high-speed networks, pair this cable with compatible Cat.6A switches and patch panels. The LSZH jacket makes it suitable for use in plenum spaces and areas with strict fire codes.
