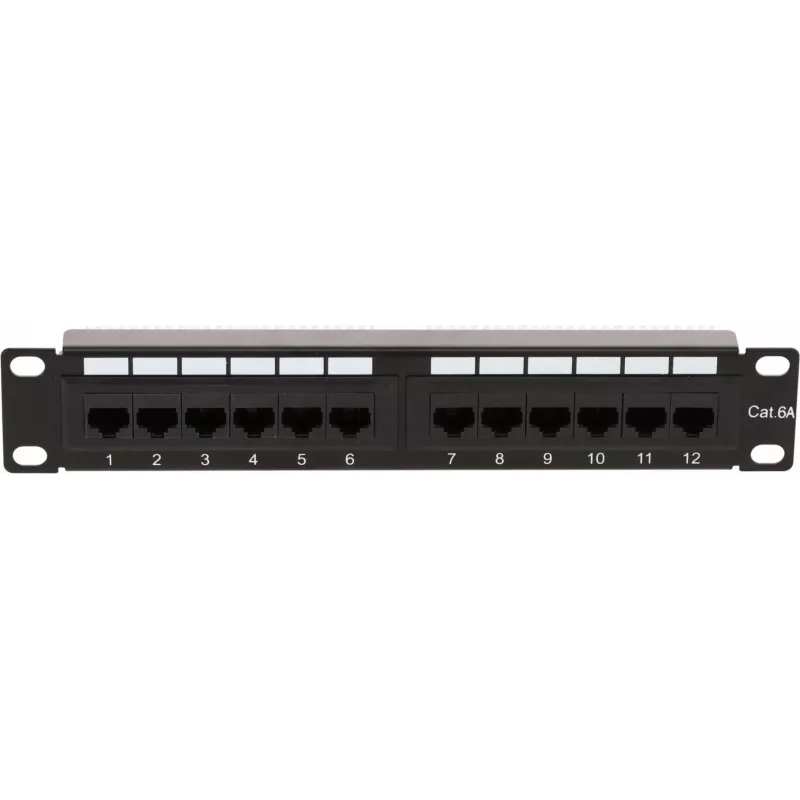

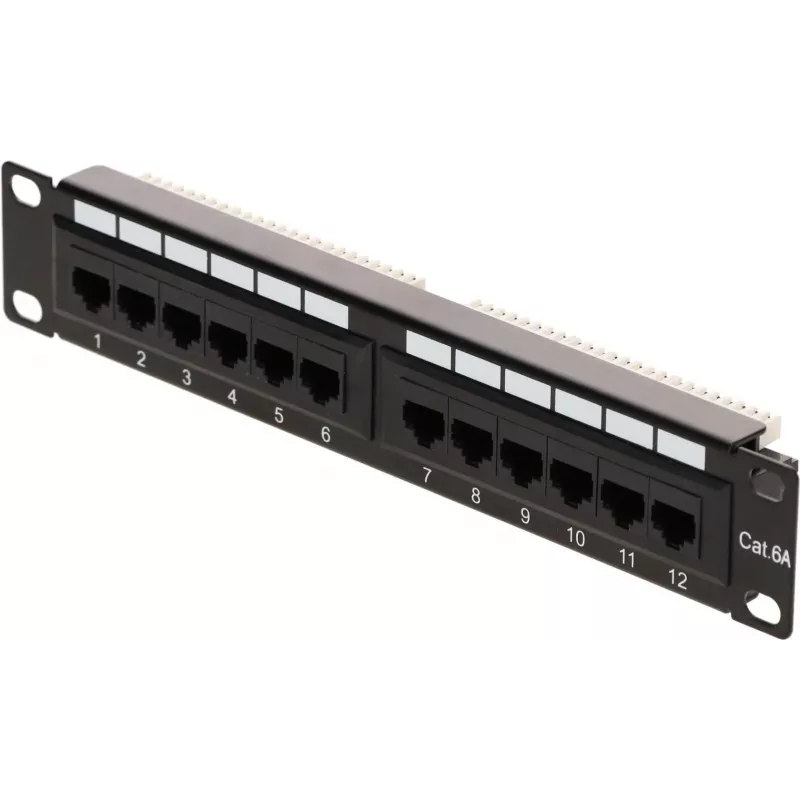

DSIT 10 inch 12-Port UTP CAT 6a patch panel DS-10Patch6a-12UTP

Compact 10-inch patch panels often sacrifice performance for size, but the DSIT DS-10Patch6a-12UTP proves that small form factor and CAT 6a capability can coexist. This 12-port unshielded patch panel brings 10 Gigabit Ethernet readiness to space-constrained racks, offices, and edge installations where every inch counts.

Highlights

• 12 RJ45 ports in a 10-inch rackmount format, ideal for mini racks and wall enclosures
• CAT 6a UTP performance supports data rates up to 10GBASE-T with 500 MHz bandwidth

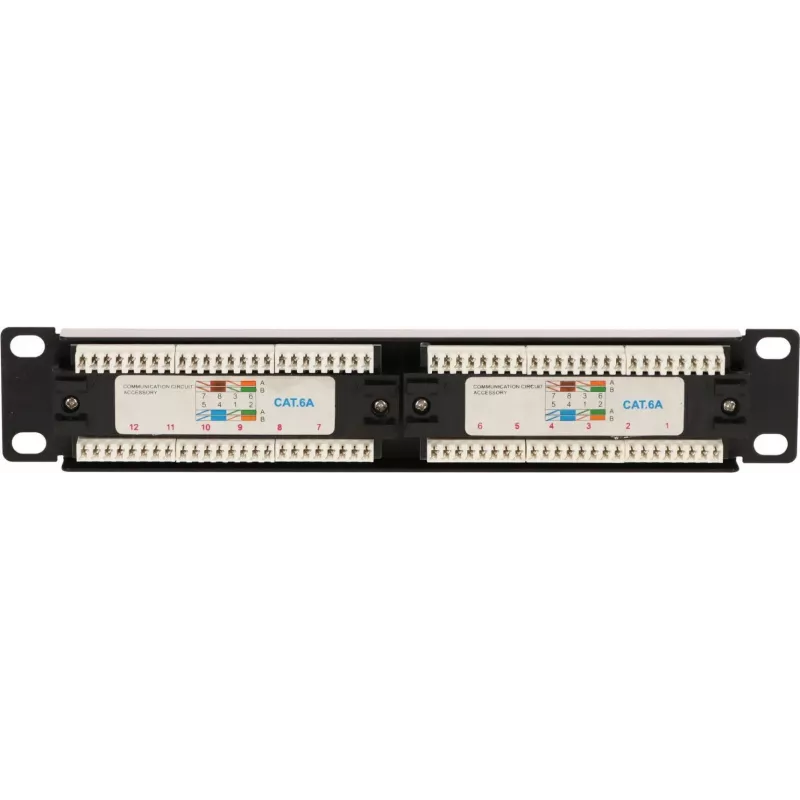

• Tool-free LSA+ IDC termination on the rear speeds up installation and reduces errors
• Robust metal housing with integrated rear cable management bar keeps wiring tidy
• Clearly labeled port fields simplify identification and maintenance

In daily use

Whether you are building out a small office network, a home lab, or a distributed edge cabinet, this panel delivers reliable high-speed connectivity without wasting rack space. The front-facing RJ45 jacks accept standard patch cords, while the rear IDC blocks accept 22–26 AWG solid conductors. The included cable tie bar prevents strain on terminations and maintains a clean, professional look.

Full specifications

• Product type: Patch panel
• Form factor: 10-inch rackmount
• Number of ports: 12
• Ethernet category: CAT 6a
• Shielding type: UTP (unshielded twisted pair)
• Front connector: RJ45 female
• Rear termination: IDC (LSA+)
• Wiring standard: TIA/EIA 568A/B
• Data transfer rate: up to 10 Gbps
• Frequency bandwidth: 500 MHz
• Housing material: metal
• Colour: black
• Integrated cable management: yes (rear cable bar)
• Labeling fields: yes
• Mounting: standard 10-inch cabinets/racks
• Application: LAN, data centers, office networks

Final note

The DSIT DS-10Patch6a-12UTP is a smart choice for installers and IT managers who need CAT 6a performance in a compact, easy-to-manage 10-inch patch panel.
