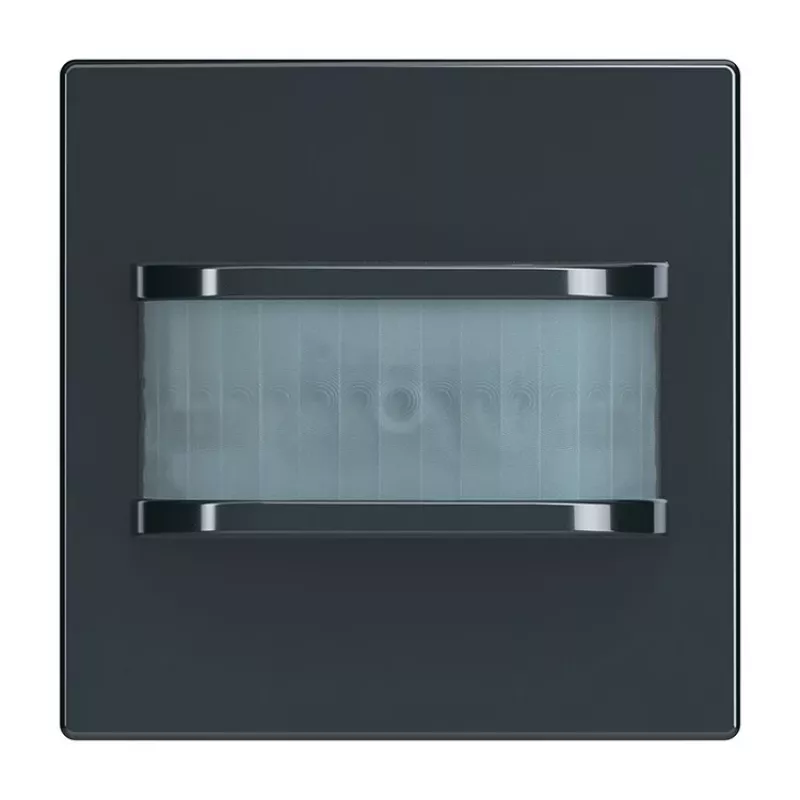

Busch-Jaeger Basic senzor BW180 64761-81 (2CKA006800A2920)

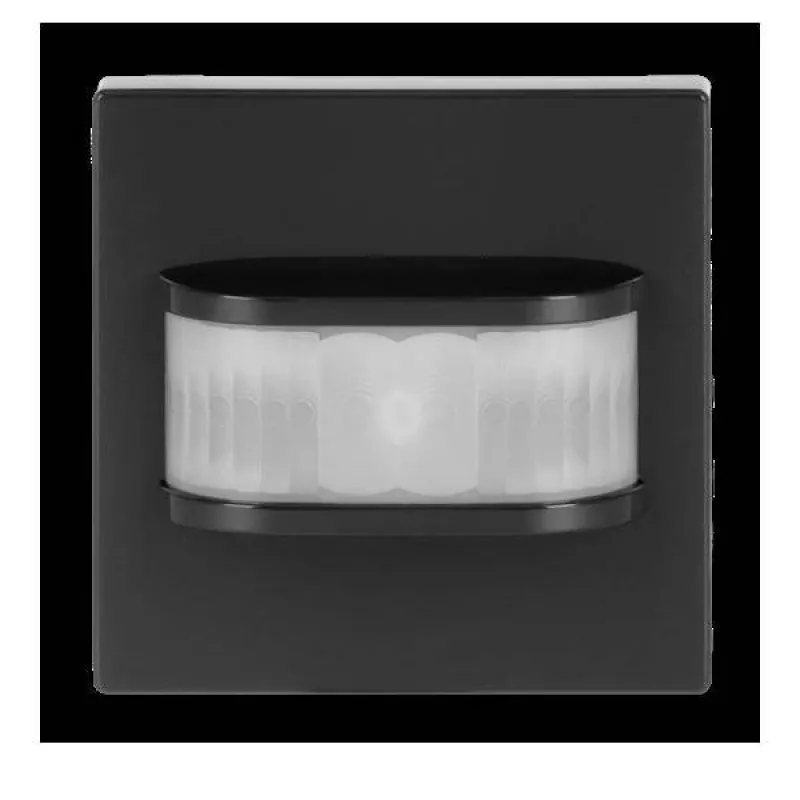

Automate lighting in hallways, stairwells, and utility rooms with the Busch-Jaeger Basic Sensor BW180. This flush-mounted passive infrared sensor detects motion within a 180° angle and switches connected lighting automatically, eliminating the need for manual switches in frequently used areas.

Who is it for

Electricians and homeowners seeking a reliable, discreet motion sensor for indoor lighting control. Ideal for corridors, basements, garages, and bathrooms where hands-free operation improves convenience and energy efficiency.

Main features

• Passive infrared (PIR) sensor with 180° detection angle
• Detection range up to 10 m diameter for motion, 6 m for presence
• Adjustable time delay from 10 seconds to 30 minutes
• Brightness threshold adjustable from 5 lux to 1000 lux or daylight operation
• Switching capacity up to 2300 W for incandescent/halogen, 1200 VA for fluorescent, 250 W for LED
• Flush-mounted installation compatible with Busch-Jaeger BasicLINE cover plates
• Standby power consumption below 0.3 W

Specifications

• Operating voltage: 230 V AC, 50/60 Hz
• Protection class: IP20
• Recommended installation height: 2.2 m for motion detection, 0.8–1.2 m for presence detection
• Operating temperature: 0 °C to +45 °C
• Number of channels: 1 (light)

Tips

For optimal coverage, install the sensor at the recommended height and avoid pointing it directly at heat sources or windows. Adjust the time delay and brightness threshold to match room usage patterns, reducing unnecessary switching and extending lamp life.
