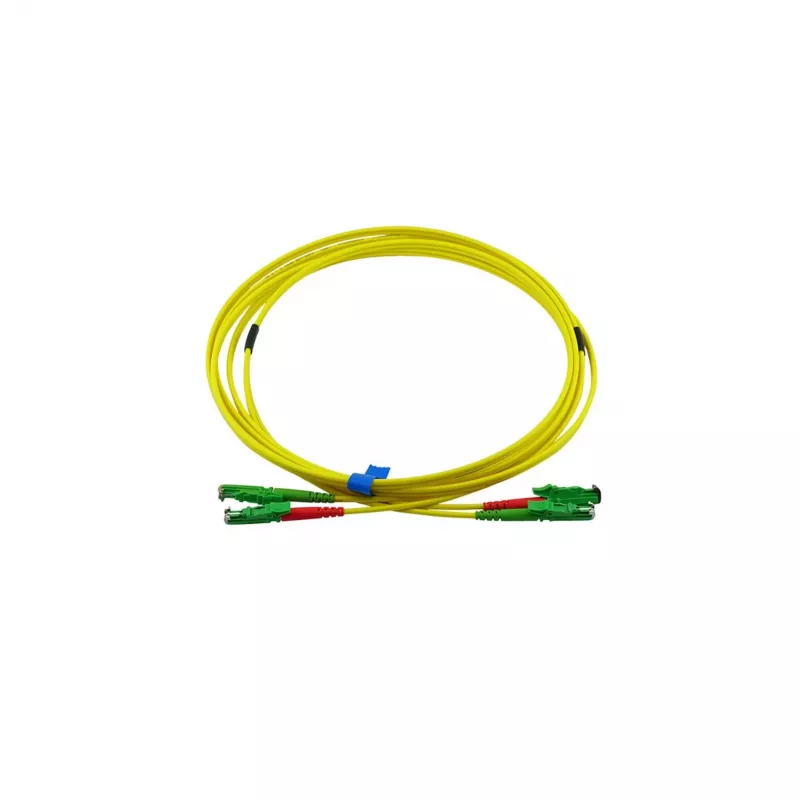

BlueOptics Duplex optički patch kabel, E2000-APC/E2000-APC, singlemode OS2, 3m, zeleni

The BlueOptics SFP3838BU3MM is a high-quality duplex fiber optic patch cable designed for reliable singlemode connections. Featuring E2000-APC connectors on both ends, this cable ensures low insertion loss and high return loss, making it ideal for demanding network environments. With a length of 3 meters and a green LSZH jacket, it combines performance with safety.

Advantages

This patch cable offers exceptional signal integrity with typical insertion loss ≤0.25 dB and return loss ≥60 dB. The APC polish minimizes back reflection, crucial for high-speed data transmission. The LSZH jacket reduces toxic fumes in case of fire, enhancing safety in data centers and telecom rooms.

Suitable for

• Data centers requiring high-density cabling
• Telecommunications networks
• Local Area Networks (LAN)
• FTTx applications
• Singlemode fiber optic connections

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Singlemode (OS2)
• Core/Cladding: 9/125 µm
• Number of Fibers: 2 (Duplex)
• Connector A: E2000-APC
• Connector B: E2000-APC
• Connector Polish: APC
• Cable Length: 3 meters
• Jacket Material: LSZH
• Jacket Color: Green
• Cable Diameter: 3.0 mm
• Insertion Loss: ≤0.25 dB (typical)
• Return Loss: ≥60 dB (typical)
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable supports wavelengths of 1310nm and 1550nm, making it versatile for various singlemode applications.
