ATTE ABOX-L3 vanjsko kućište IP55

The ATTE ABOX-L3 is a robust outdoor enclosure designed to protect sensitive electronic equipment in harsh environments. With an IP55 rating and IK08 impact resistance, it offers reliable protection against dust, water jets, and mechanical impacts. Manufactured from high-quality ABS material in light grey (RAL 7035), this enclosure is UV-resistant and suitable for wall mounting via internal mounting points. The opaque lid is secured with 4 plastic screws, and the polyurethane gasket ensures a tight seal. Internal bosses allow for easy installation of mounting plates or DIN rails. Cable entry is via undrilled walls, providing flexibility for custom cable gland placement. Operating temperature range from -25°C to +60°C makes it ideal for outdoor use.

Advantages

Durable ABS construction with UV resistance ensures long-lasting performance in outdoor conditions. The IP55 rating protects against dust and water, while IK08 impact rating safeguards against vandalism or accidental damage. Easy wall mounting and internal mounting options simplify installation.

Suitable for

• Outdoor networking equipment
• Security camera systems
• Telecommunication devices
• Industrial control units

Key specifications

• Enclosure Type: Outdoor Enclosure
• IP Protection Rating: IP55
• IK Impact Rating: IK08
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Color: Light Grey (RAL 7035)
• External Dimensions (L x W x H): 250 x 200 x 100 mm
• Lid Type: Opaque
• Lid Fastening: 4 Plastic Screws
• Gasket Material: Polyurethane
• Mounting Type: Wall Mountable (via internal mounting points)
• Operating Temperature Range: -25°C to +60°C
• UV Resistance: Yes
• Flammability Rating: UL94-V2

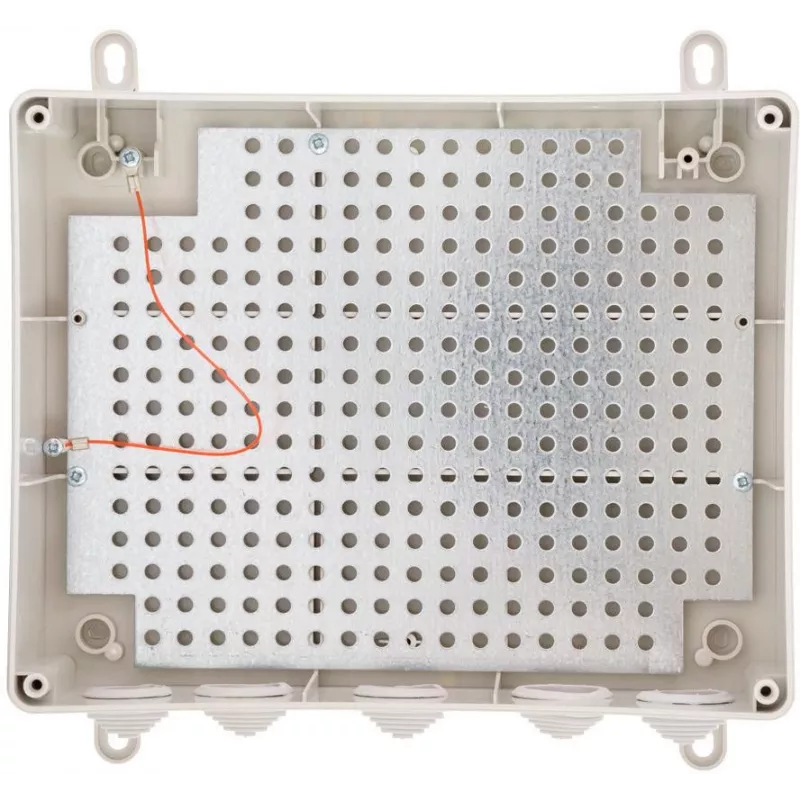

• Internal Mounting: Bosses for mounting plate/DIN rail
• Cable Entry: Undrilled walls for custom cable glands

Recommendations

For optimal installation, use appropriate cable glands and mounting hardware. Ensure the enclosure is mounted on a flat, stable surface. Regularly inspect the gasket and screws to maintain the IP55 seal.
